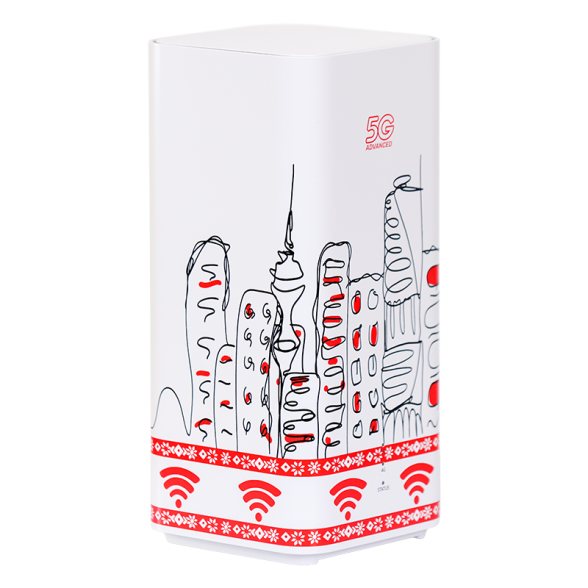

Huawei 5.5G CPE PRO6 H165383 Hala Feb Edition

3GPP

3GPP protocol

Release 18

5G-4G interworking

NSA option 3/3x，SA option 2

5G

Frequency Band

FDD：n1/3/5/7/8/20/28/71/75

TDD：n38/40/41/77/78/79

SUL/SDL

SUL：N80/81/82/83/84

Bandwidth

TDD: 100/90/80/70/60/50/40/20/15/10MHz

FDD: 50/40/30/20/15/10/5MHz

DL MIMO

4*4 MIMO DL: N1/3/7/28/N38/40/41/75/79

2*2 MIMO：N5/8/20/71

UL MIMO

2*2: N1/38/41/77/78/79 (SA only)

DL/UL modulation

DL 1024QAM/UL 256QAM

DL/UL Peak throughput

5G NR 11.7Gbps/ 2.5G （2CC 200MHz 8x8MIMO, SA TDD, Full-timeslot theoretical rate）

5G NR 9.36Gbps/ 500Mbps （2CC 200MHz 8x8MIMO, SA TDD 8:2 ratio,）

No. of Carriers

3CC@DL (adapt to Ooredoo new spectrum N20+40+78)，2CC@UL

4G

Frequency Band

B1/3/5/7/8/20/28/32/38/40/41/42/43

MIMO

4*4 : B1/3/7/32/38/39/40/41/42/43

2*2 : B5/8/18/19/20/26/28/34

Antenna

Antenna Gain

12dBi

Wi-Fi

Protocol

WiFi 7

Feature

Smart Phone APP

Connect Number

128 Users

Mesh

EasyMesh R4、Mesh+

BOX

Interface

1 RJ45*2.5GE+ 1 RJ45*GE (1 LAN/WAN+1 LAN)

1xRJ11 for voice

2* external antenna interface

1xSIM card slot (4FF), 1x power interface
